FlexPod Bracket Z

THANK YOU for purchasing the FlexPod Bracket Z from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

Parts Included:

  • 1x Bracket Z
  • 2 ea Plastite Screws
  • 2 ea Spacers

Tools Required:

Procedure

arrow-tip

    1. Remove factory-mounting screws from  behind tach/speedometer unit. Press the  release button on the green wiring attachment to detach  it and lift the unit off the steering wheel.  Keep the factory screws!

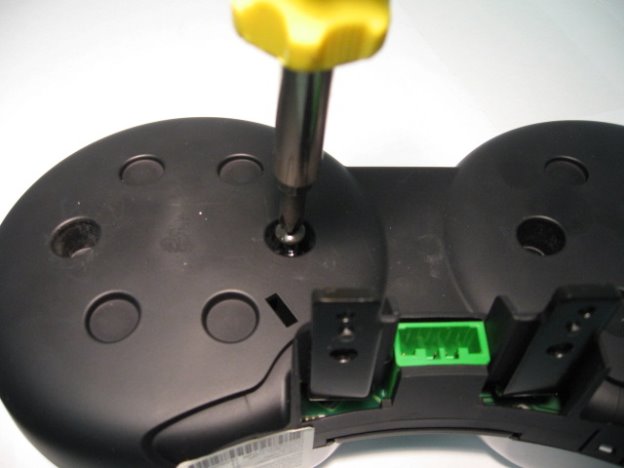

    2. Remove the two factory screws from the  back of the tachometer. Or remove the two from the back of the speedometer if you  have a dual gauge and want to mount you device on that side.

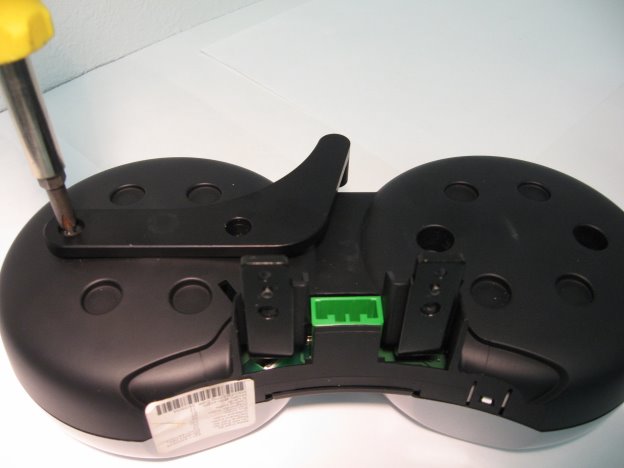

    3. Place spacers into holes where the  screws were, and secure the mounting  bracket with the included screws. Do not  over tighten.

    4. Place unit back onto steering wheel and  press the wiring attachment back into  position. Tighten the factory screws into the  bracket on top of the wheel.
