Gemini Phone Mount for Chevrolet Spark Install Guide

THANK YOU for purchasing the Chevy Spark Gemini Phone Mount from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

Parts Included:

  • 1x Flex Arm Phone Mount

Tools Required:

  • Plastic Panel Tool or Flathead Screwdriver
  • 10mm socket wrench w/ extension
  • 10mm open end wrench (optional)

Procedure

arrow-tip

Installation Process

    1. Using the plastic panel tool, or another thin object that will not scratch the plastic, pry at the round panel at the back of the gauge cluster.

    1. Using your 10mm socket or wrench, unfasten the nut holding the gauge cluster in place.

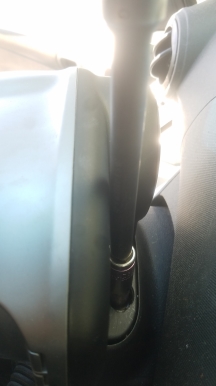

    1. Screw the bottom end of the FlexArm onto the stud protruding from the back of the gauge cluster.
    2. *Optional* If you are unable to tighten the FlexArm all the way, use the 10mm open end wrench at the base of the 17mm ball to finish tightening the mount.

    1. Place your phone into the phone mount, and you’re done!

!
