Bonnet Stripe Decal Kit Install Guide - MINI F54

THANK YOU for purchasing the MINI F54 Bonnet Stripe Decal Kit by CravenSpeed. This product is made from the highest grade materials and is guaranteed to be free from defects.

You can buy our CravenSpeed Bonnet Stripe Decal Kit for MINI F54 here

Items Included:

  • 1 Pair Hood Stripe Decals

Items Required:

  • Soft, Lint-Free Cloth
  • Squeegee
  • Painters Tape
  • Utility Spray Bottle
  • H2O
  • Dish Soap
  • X-acto Knife or Scissors
  • Measuring Tape
  • Writing Implement (Pen or Marker)

NOTE: Installing vinyl decals may seem like an intimidating task, but we have developed this instructional guide to make the process much easier than it sounds. In the unlikely event your decal application goes awry, we offer one-time $5 mulligan kit on each purchase made directly through the CravenSpeed.com website. Just contact support@cravenspeed.com for help.

Procedure

arrow-tip

Clean Hood Surface

  1. Let’s start by giving your MINI’s hood a thorough cleaning in preparation for the decals. A clay bar treatment would be perfect at this time, but we understand this process is not for everyone. Once the surface is dry, wipe down the area again with a lint-free, soft cloth making sure there are no swirls or debris left behind. Any imperfections left on the surface will likely be seen once the decals are applied.
  2. Take your utility spray bottle, fill it with water and add a couple small drops of dish soap. Shake it up and set it aside.

Measure the Stripe Layout

  1. Before we begin slapping on the decals, we’ll need to mark off where they will lay on the hood, so grab your painters tape, a marking pen, and a measuring tape and let’s get to it. The reference points we'll be using are the windshield washer nozzles and the hood emblem. Place a 3" length of painters tape outboard of each washer nozzle, measure off 2.25" and make a mark with your pen.
  2. Do the same with the hood emblem. Apply a 9" length of painters tape to both sides of the hood emblem and mark off 8.00" from the tips of the 'wings' to either side.

Prepare the Hood Stripe Decals

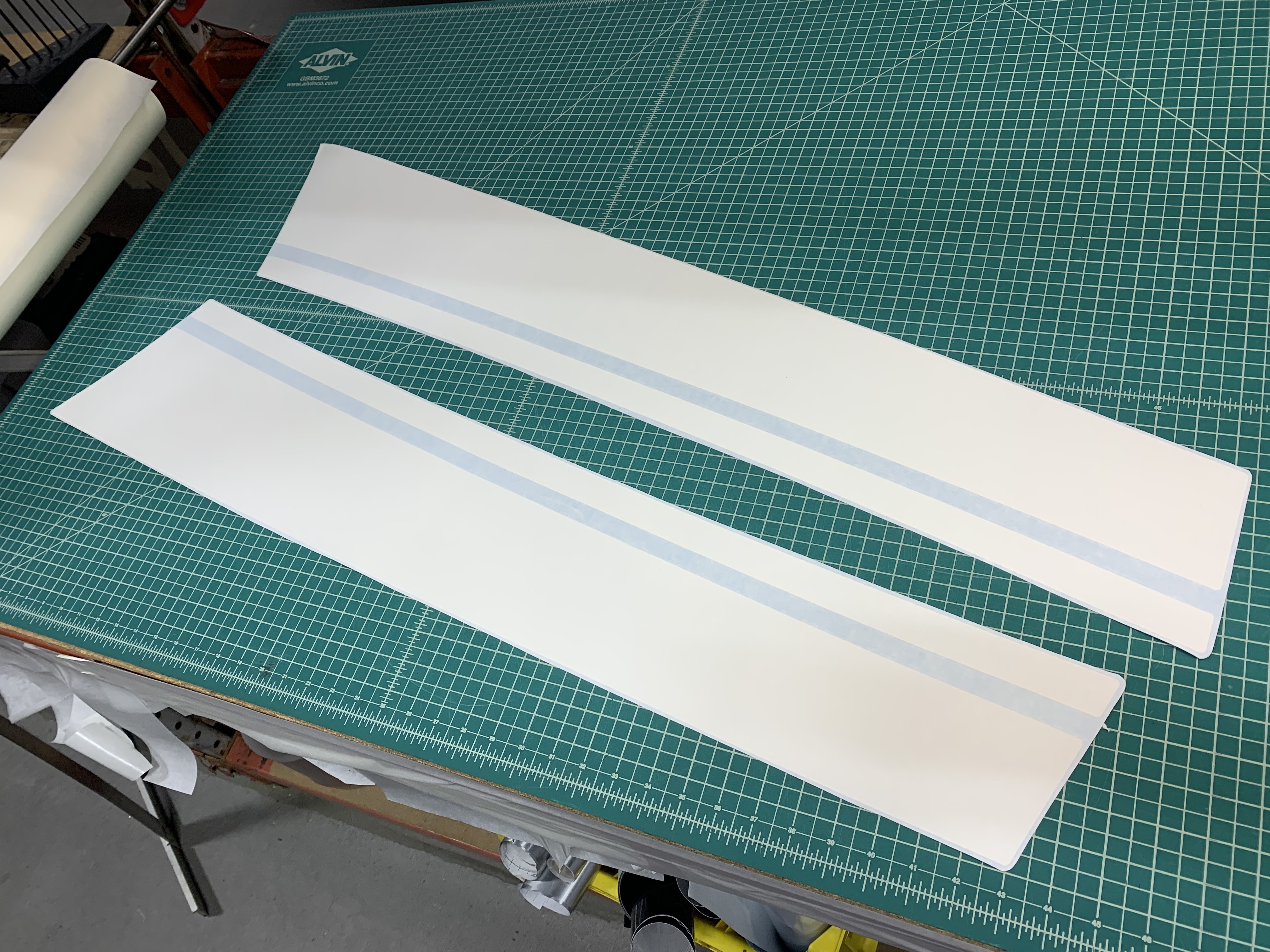

  1. Lay out the decals face up on a flat work surface and trim the paper around the perimeter to approx .125” (1/8") from the vinyl. This will give the proper spacing away from the beltline trim and from the tape indicators you previously laid down.
  2. Bring the decals over to the hood and lay them down onto their correct sides. You may temporarily tape the decals into place so you can step back to visually inspect their alignment. Once you’re pleased with how it’s looking, remove the decals and set them aside.

Apply the Hood Stripes

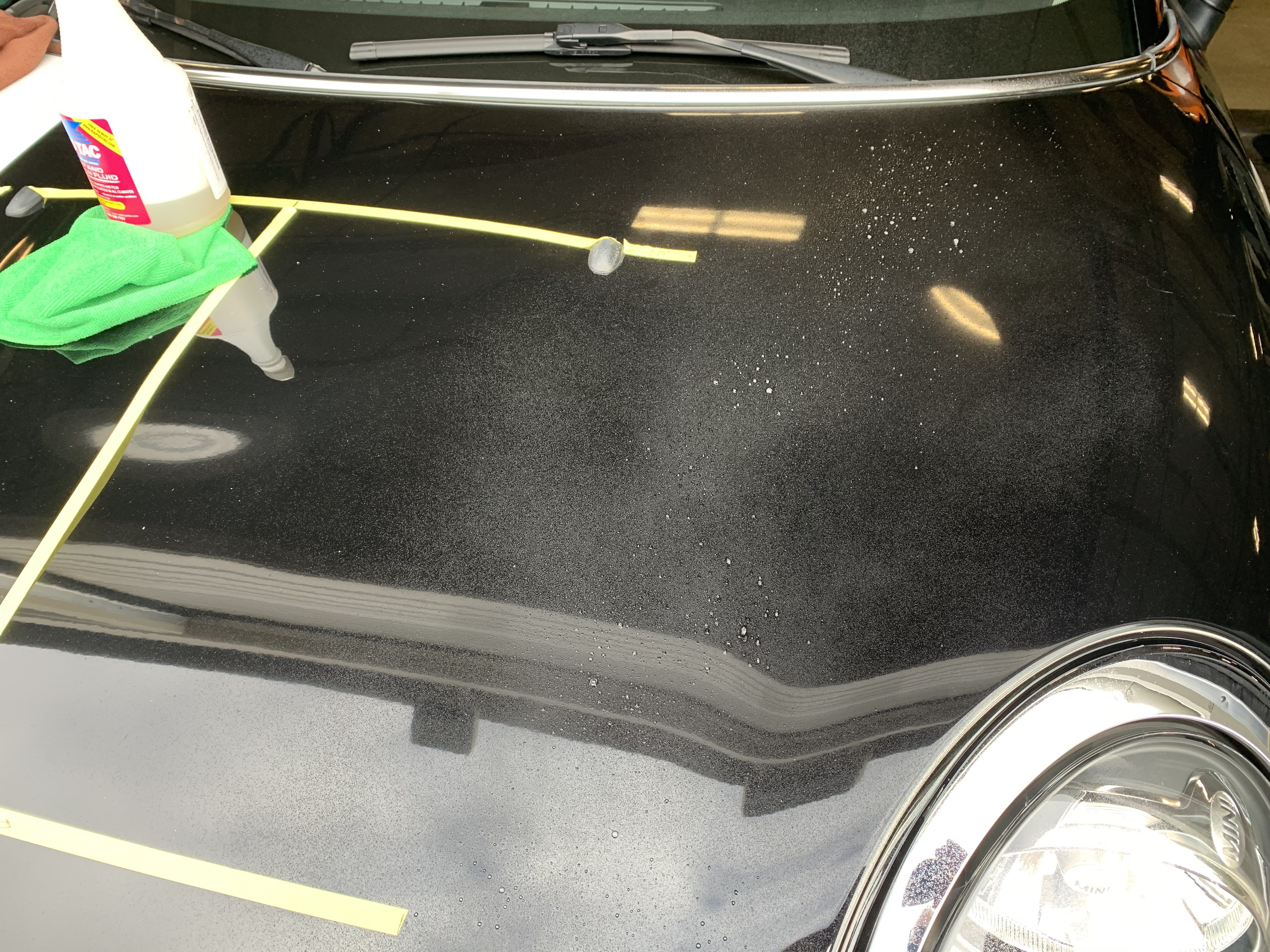

  1. Have your soap/water solution bottle handy and ensure that the hood surface is still clean. Spray the stripe areas of hood down with an even coat of the solution.
  2. Take one of the hood decals and completely peel the paper backing off so that the sticky side is exposed. Do your best not to touch the vinyl and leave any fingerprints on it that could affect the adhesion, and whatever you do.. don't drop it! Spray an even coat of your soap/water solution to both sides of the decal. It doesn’t need to be completely soaked… it just needs enough for you to be able to readjust the decal if you don’t set it down perfectly straight on the first try.

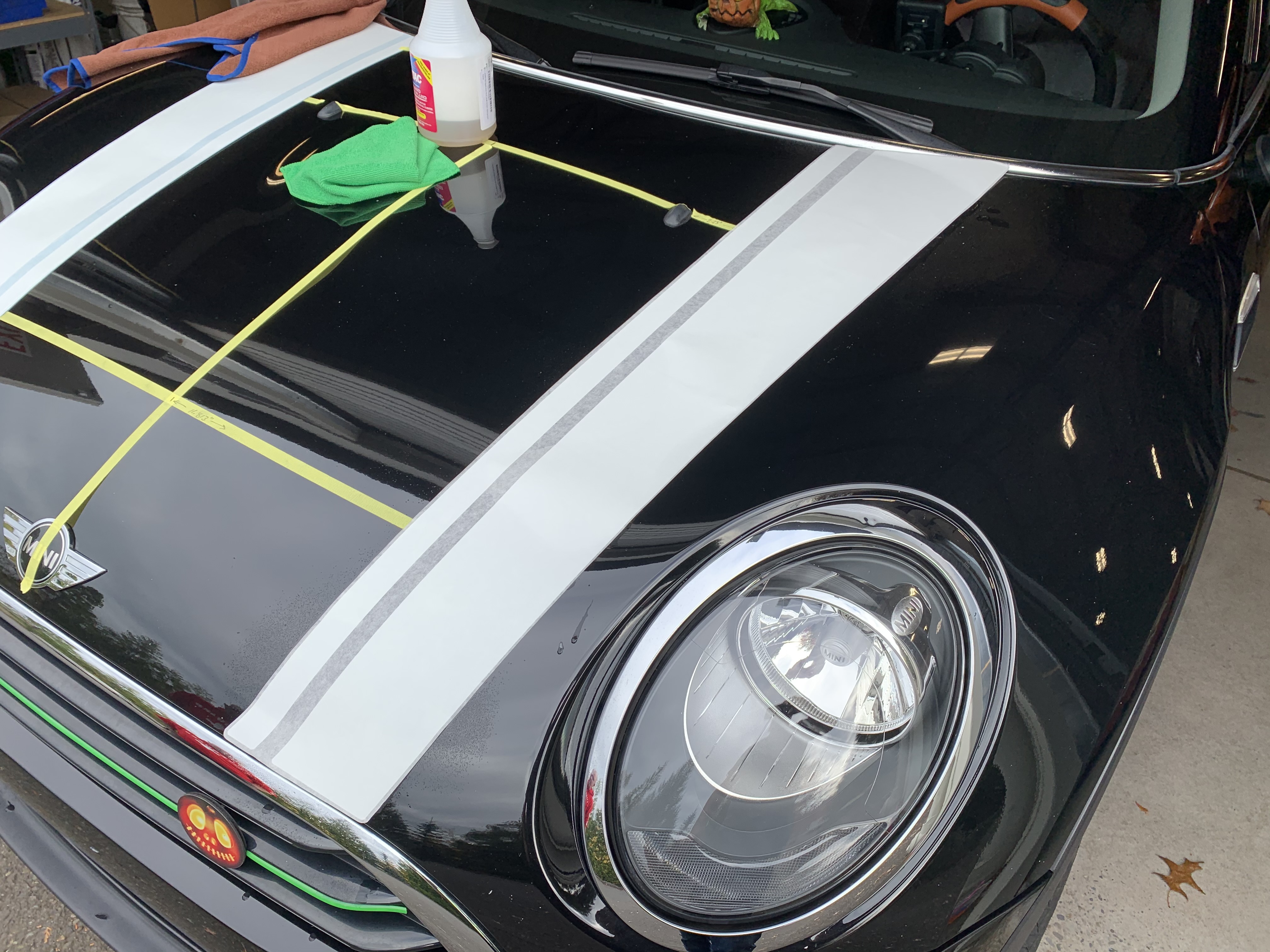

  3. Carefully set the decal down onto the hood with the windshield edge of the decal right up against the beltline trim and lining up the inside edge with the taped layout marks. The mixed solution should allow you to pull up and reposition the decal if necessary and you may even be able to slide it around a bit.

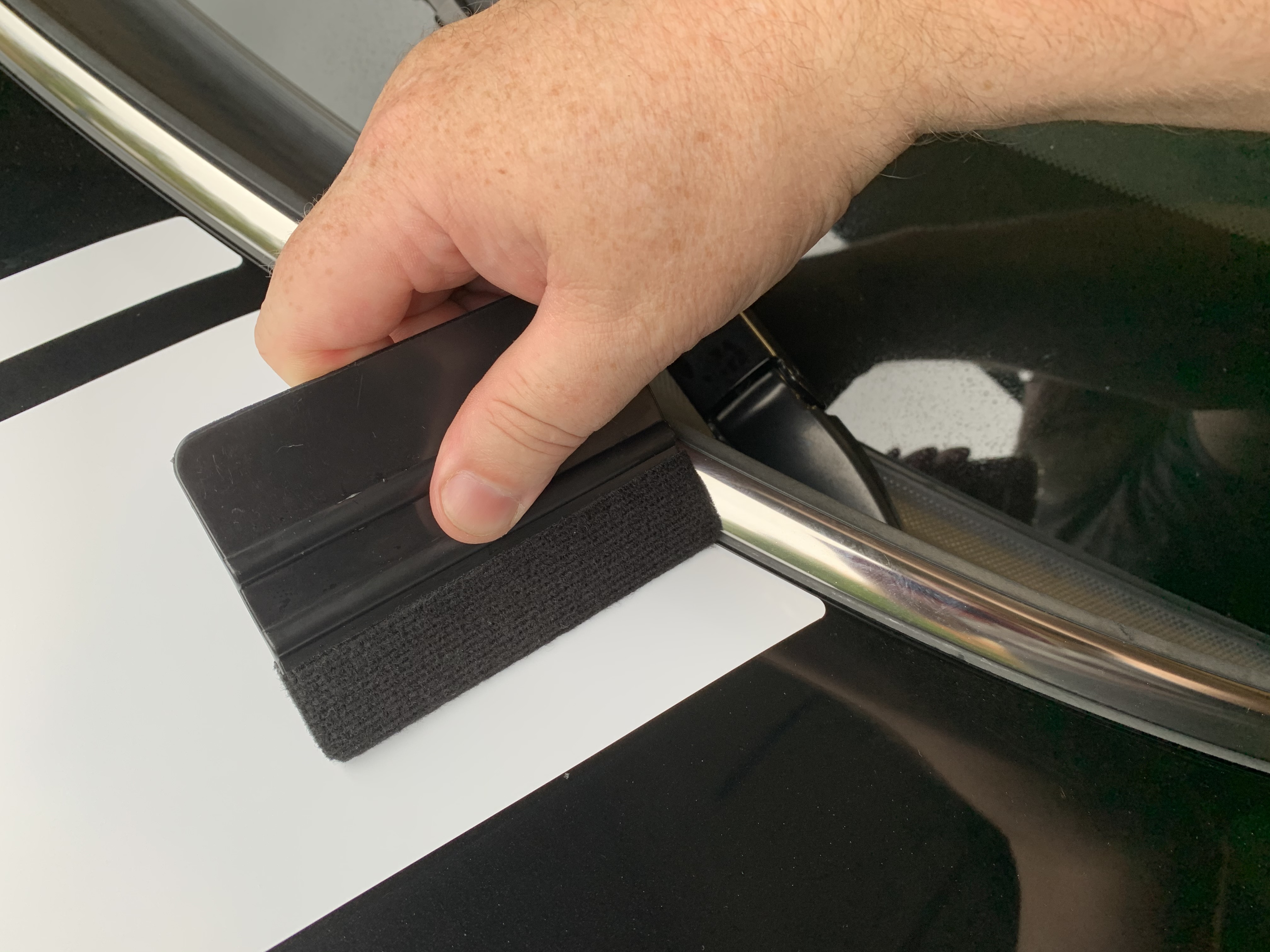

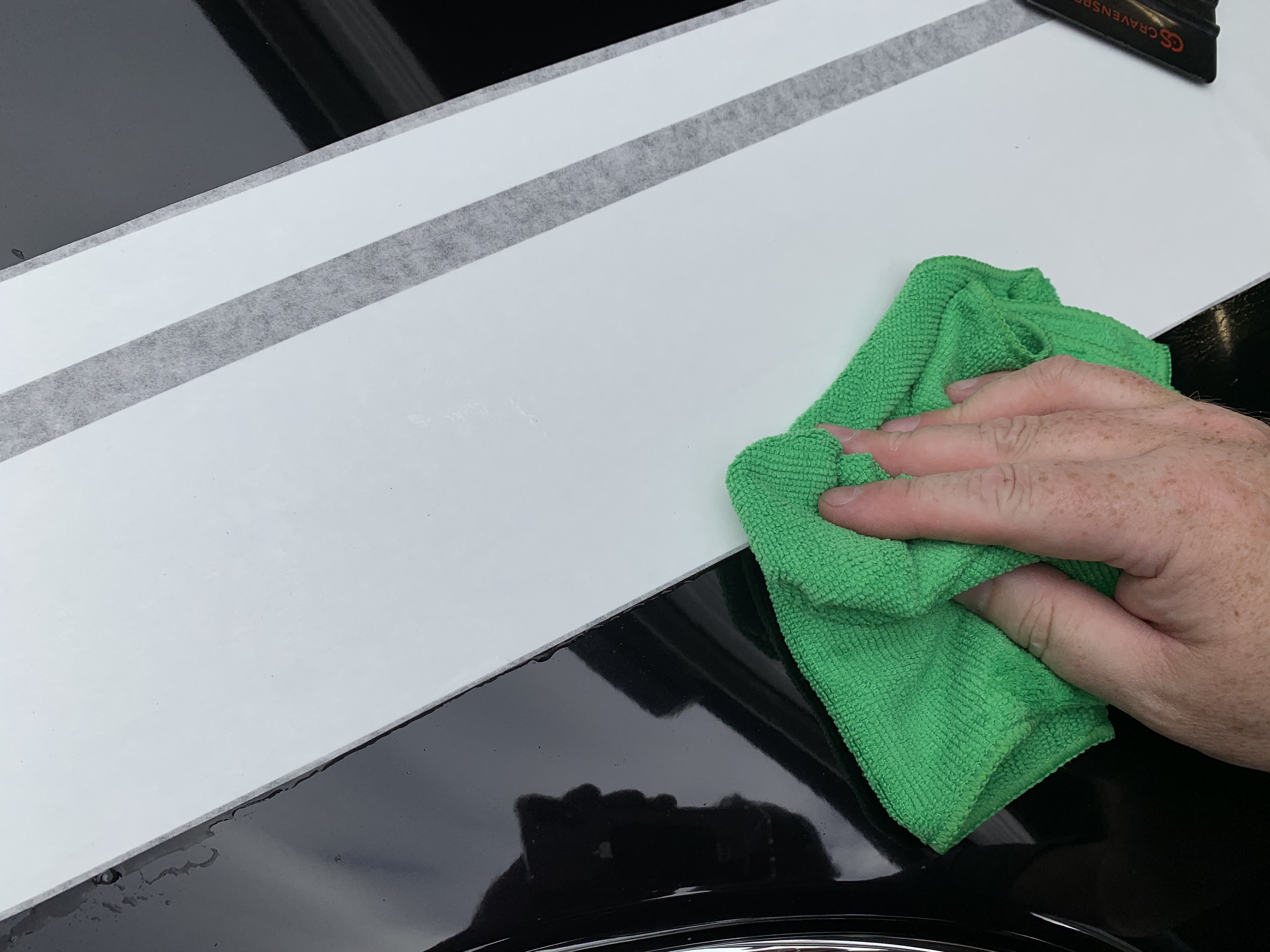

  4. Once you’re pleased with its positioning, start from the middle and gently squeegee the soap/water solution out from under the decal. Use the soft, lint-free cloth to clean up any excess solution while you work the decal down. Use the hard plastic edge of the squeegee on the transfer paper, but once you peel the transfer paper off, to avoid any scratching of the vinyl only use the microfiber edge.
  5. Once you’ve thoroughly gone over the first decal a couple times, give it a rest and proceed with the other side. This will allow the solution to evaporate a little bit and assist with adhesion before peeling the transfer paper off.

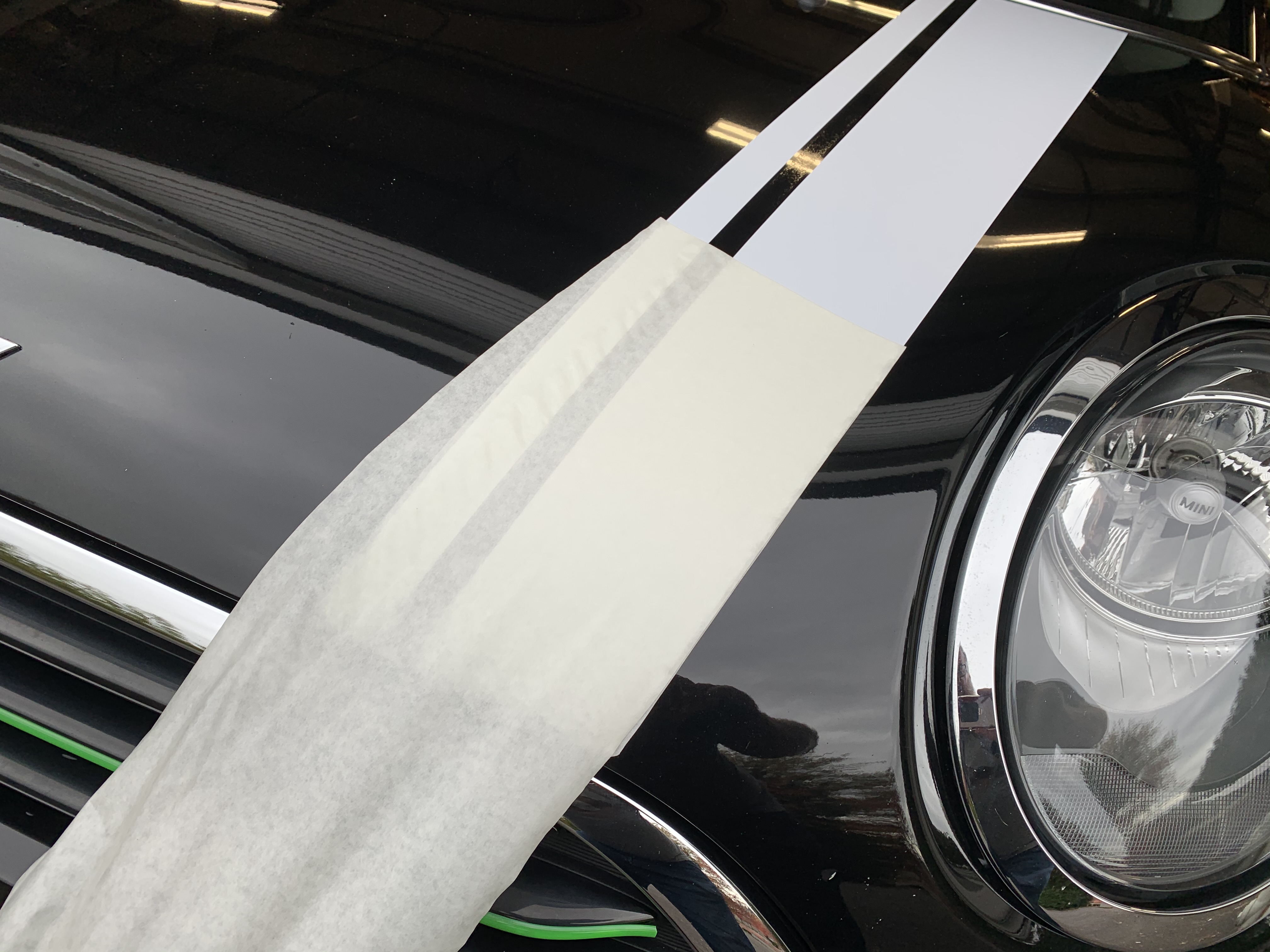

  6. Ok.. you’ve fully squeegeed both decals down. Starting at one end, gently peel the transfer paper back upon itself to facilitate separation of the vinyl from the paper. If the decal wants to come up with the paper, use the microfiber side of the squeegee to press it back down again. Don’t worry too much about any air bubbles or creases at this time. You can address those once the transfer paper is completely removed.
  7. Once you have the transfer paper completely removed, inspect the decal for any creases or solution bubbles. In all likelihood you’re probably going to have bubbles to some extent that will need attention. Use the microfiber side of the squeegee to work the bubbles to the edge of the decal and then soak up the solution with the soft, lint-free cloth.
  8. For pesky bubbles that don’t want to slide to the edge, try to combine them by pushing them toward one another and then piercing the vinyl with your x-acto knife. You should then be able to squeegee the solution out through this tiny hole. Any minor bubbles or surface imperfections that you can’t seem to eliminate should disappear over the next couple of weeks as the solution evaporates and the vinyl decal shrinks a wee bit. Leaving the car exposed in the sun will help speed up this process.
