MINI Gen 2 ScanGauge II Mount

THANK YOU for purchasing the MINI Gen 2 ScanGauge II Mount from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

Parts Included:

  • 1x ScanGauge II Module
  • 1x Bracket R (spacers installed)
  • 1x Tibia Flextension Arm
  • 1x Button Head Screw
  • 1x Flat Head Screw
  • 2 ea Plastite Screws
  • 2 ea Plastic Washers

Tools Required:

  • Philips Head Screwdriver
  • T27 Torx Wrench

Procedure

arrow-tip

    1. Remove factory mounting screws behind tachometer using the T27 Torx wrench. Set them safely aside as you will be reinstalling them.

    2. Lean the tach towards the steering wheel to gain access to the screws on the backside of it.

    3. Using the Philips Head Screwdriver, remove the two screws on the back cover of the tach. You may wish to keep the OEM screws, but you will not need them for this install.

    4. Place the Bracket R so that the installed spacers fit into the holes where the tach housing screws were removed.

    5. Affix the Bracket R with the included Plastite screws. Make sure the bracket is solid, but do not overtighten.

    6. Place the tach back in its original position and reattach it with the factory Torx screws.

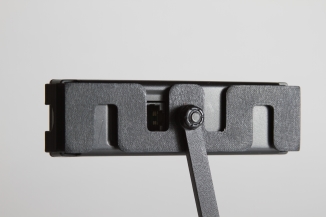

    7. Place your ScanGauge into the cradle making sure the 4 end ‘tabs’ fully engage the slots in the ScanGauge housing and adjust to the desired position.
