MINI Smartphone Mount Pro Series Gen2

THANK YOU for purchasing the MINI Smartphone Mount Pro Series Gen2 from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

Parts Included:

  • 1 x Scissor Mount Assembly for Gen 2 MINI
  • 2 x Phillips head screws

Tools Required:

  • T30 Torx driver
  • Phillips screwdriver
  • 12v Car Charger
  • T-20 Torx driver
  • T-27 Torx driver
  • a pair of pliers
  • a plastic body tool or flathead screwdriver

This kit is designed to allow the driver to position a smartphone for heads-up view without needing to handle the device. Pro Series mounts allow you to customize your view by adjusting the extension arm to the angle that suits you. Simply snap in your mobile device and away you go! You will now be able to swivel the device for Horizontal or Vertical viewing quickly and easily!

The installation time for this product is approximately 30 minutes to 1 hour, depending on experience and your mechanical abilities.


It is important to note that this CravenSpeed Pro Series Mount is compatible only with R55, R56, R57, R58, R59 and R60 MINI Cooper vehicles. For other MINIs, please refer to the CS-AB922 or CS-AB919 Installation Guides.


If you have any problems during installation, please contact the company that sold you this product to work through the problem. When contacting support, please have your order number and vehicle chassis number ready. If you’re unsure what your chassis number is, you can refer to our MINI Chassis Model Code Guide.

Procedure

arrow-tip

Remove Tachometer

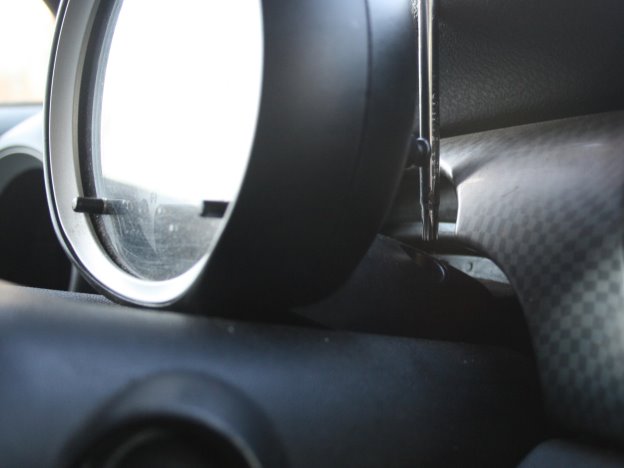

    Start by lowering the steering column to the lowest position. Find the 2 bolts that fasten the tachometer to the steering column and remove them using the T30 Torx wrench. Be careful not to drop them as this can double your install time! It is highly recommended to use a magnetic tip driver to avoid dropping the screws. Keep these Torx screws safe; you will need to put them back on.

    IMPORTANT

    The tachometer is fastened to rails on the steering column, so take note as you remove it. It will be important to realign this rail for proper re-installation.

    Pull the tachometer towards you to slide it off of the hidden rail. Lean the tach towards the wheel to gain access to the screws on the back of it. Don’t pull too strongly as the wiring will stay connected.




    Using the Philips head screwdriver, remove the left and center screws on the back cover of the tach. You may wish to keep these OEM screws, but you will not need them for the install.



Install Bracket to Tachometer

    Place the Bracket, spacers down, into the holes on the tachometer. Use our included screws (Note: These screws are thicker than the OEM screws) to fasten the bracket in place. Once the bracket is secure (no wiggle) do not continue to tighten of the screw will just strip the plastic in the tachometer.





    Put the tach back in its original position on the rail, and reattach it with the Torx screws and you should have something like this:

    Left side or right side?

    CravenSpeed Mounts come set for the right side of the tachometer, but we realize that this is not the perfect position for all users. If you wish to switch to the left side, please contact us at (503)505-6886.

The Hidden Wiring Kit (optional)

    The Hidden Wiring Kit is designed to allow you to install an additional 12v socket inside the center console, freeing up the original, and allowing you to semi-permanently hardwire a car charger in your MINI. The product is tested before shipping, and is guaranteed to be free from defects.

    Removing the Center Console

    Safety first; start by disconnecting the battery!

    Remove the T-27 Torx screws located in the front cup holders, and the T-20 Torx screw in the rear cup holder. (Your cupholder may have rubber pads at the bottom, you’ll need to pull these out gently to get to the screws located at the bottom. Some R56’s have them, others don’t)

    Carefully with a plastic tool or a screwdriver, pinch the middle of the sides of the emergency brake boot. Lift and maneuver the brake boot up, then the entire console can be lifted, but don’t pull! The power wires to the 12-Volt socket are still in place.

    Carefully unplug these wires from your 12-Volt socket. They have a one-way plug, so you don’t need to mark their locations.

    Installing the Hidden Plug

    Take the 12v socket and examine the cable. You will see that there are two wires on the extension, and these will tap into the wires for your stock 12-Volt port. The wire with red marking is the positive wire, and the black wire with faint writing is the ground wire.

    Use the supplied tap connectors to connect the wires. The red and green striped wire in the stock wiring is the car’s 12-Volt positive wire, and the car’s ground wire is the plain brown wire.

    Connect the red and green striped wire to the extension wire with red marking, and then connect the two plain wires, using the supplied taps.

    Wiring the Charger to the Mount

    Connect the 12-Volt power charger to the extension cable and place extension plug next to the shifter housing underneath the center console. Route the small end of the 12v charger out of the front of the console and then route the small end of the charger around the steering column to come out behind your tachometer, with enough slack to reach the GPS or Smartphone at the end of the extension arm.

    Reassemble the center console. Be sure to plug in your stock 12-Volt power socket! Next, replace the kick panel under the steering wheel. Finally, place your GPS or Smartphone into the clip and plug it in. Reconnect your car battery and turn the key on. The GPS or Smartphone should receive power normally.
