Shift Knob Install Guide - Fiat 500

THANK YOU for purchasing the Fiat Shift Knob from CravenSpeed. This product is made from the highest grade materials, and is guaranteed to be free from defects.

You can buy our CravenSpeed Shift Knob for Fiat 500 here

Parts Included:

  • 1x Knob Body
  • 1x Knob Cap
  • 6 ea Screws

Tools Required:

  • Knife
  • 10mm Socket

Procedure

arrow-tip

    1) Use a knife to gently lift the shift patterned plastic covering the retainer bolt on the shift knob. This cover is held in place with double-sided adhesive tape.

    2) Once the retainer bolt is revealed, use a 10mm socket to remove the bolt.

    3) Take off the ‘layers’ of knob and save or discard.

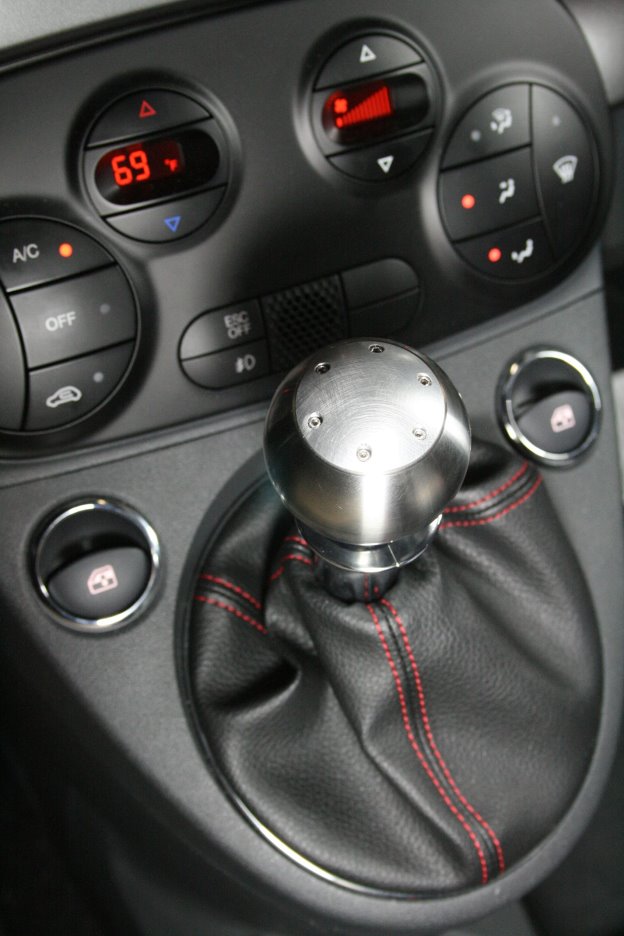

    4) Place the Stainless Steel Knob Body on the shaft and re-use the OEM retainer bolt.

    5) Put the cap in place and tighten all 6 cap screws.
